Controll DC Motors
Control DC Motors
Aim:
The main aim of the project is to control the motors of TeBoT.
Components Required:
| Sr. No | Component | Quantity |
|---|---|---|
| 1 | TeBoT | 1 |
| 2 | TeBoT Cable | 1 |
Connection and Code Upload:

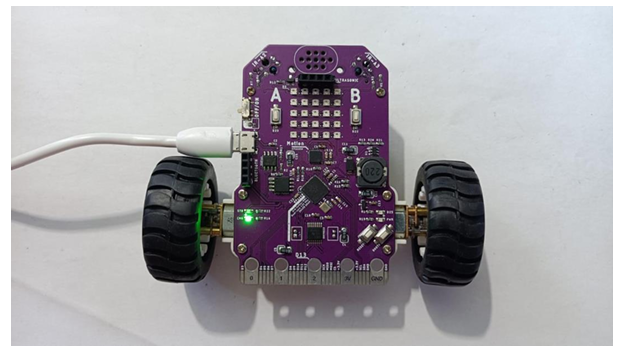

Step 1: Connect the TeBoT with your device and turn on it.
Step 2: Select the board and port, then upload the code.
Warning: If you face any issue while uploading the code, first “OFF” the TeBoT. Next, turn “ON” the TeBoT. Press the “BOOT” button for a short time then press the “RESET” button once. Then release the “BOOT” button. You will get a drive. Then upload the code.
Now, press the button (A / D23). First the motors will move forward for few seconds and then move backward for few seconds.
Conclusion: From this project we got the idea about all components, connection of those components and controlled the DC motors.
