Danger Detector
Danger Detector
Aim:
The main aim of the project is to make a danger detector on TeBoT.
Components Required:
| Sr. No | Component | Quantity |
|---|---|---|
| 1 | TeBoT and cable | 1 |

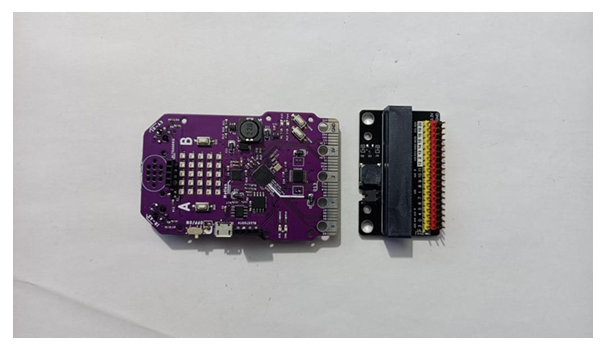

| 2 | TeBoT Connector | 1 |
| 3 | Ultrasonic Sensor | 1 |
| 4 | Jumper Wires (M-F) | 3 |
| 5 | Jumper Wires (M-M) | 1 |
| 6 | LED (Red) and LED (Green) | 1 |
| 7 | Breadboard | 1 |
Connection and Code Upload:

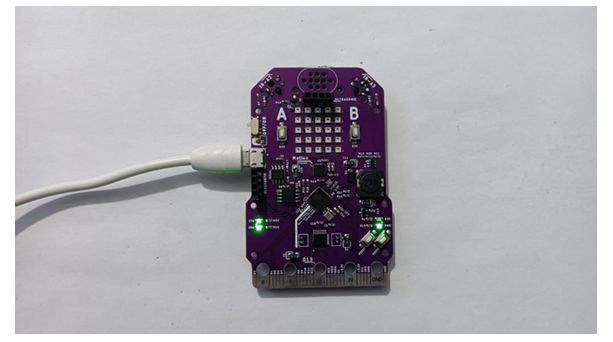

Step 1: Connect the TeBoT with your device and turn on it.
Step 2: Select the board and port, then upload the code.
Warning: If you face any issue while uploading the code, then first “OFF” the TeBoT. Next, turn “ON” the TeBoT. Press the “BOOT” button for a short time then press the “RESET” button once. Then release the “BOOT” button. You will get a drive. Then upload the code.

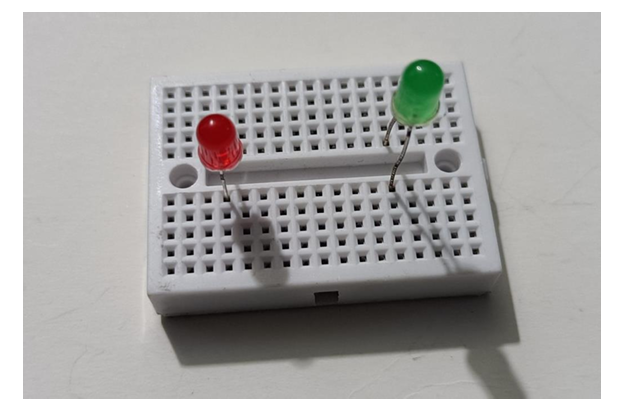

Step 3: Now take the breadboard and connect Red LED and Green LED on it.

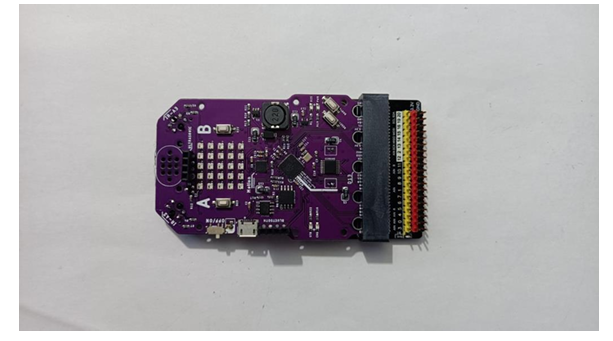

Step 4: Then connect the connector with TeBoT.

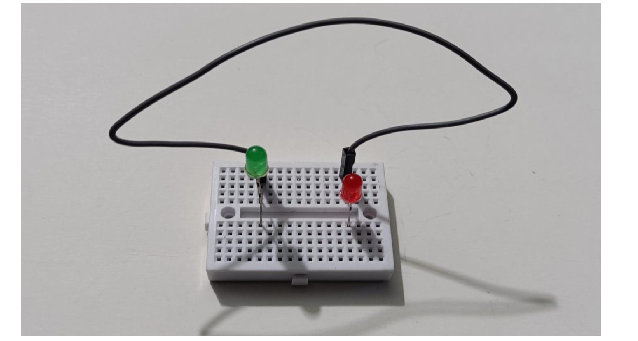

Step 5: Now connect the LEDs with TeBoT. Connect both LEDs –VE with each other.

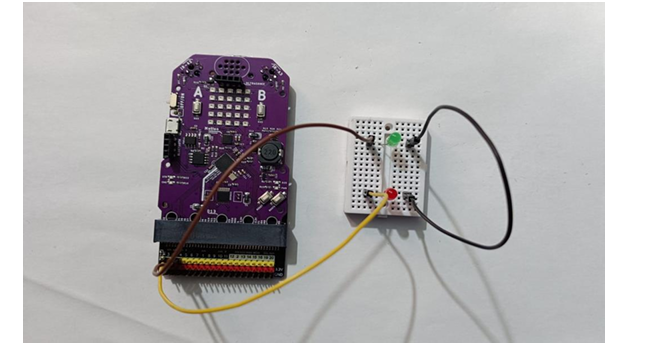

Step 6: Now connect +VE of Red LED with signal Pin no 3 of the connector and +VE of Green LED with signal Pin no 4 of connector.

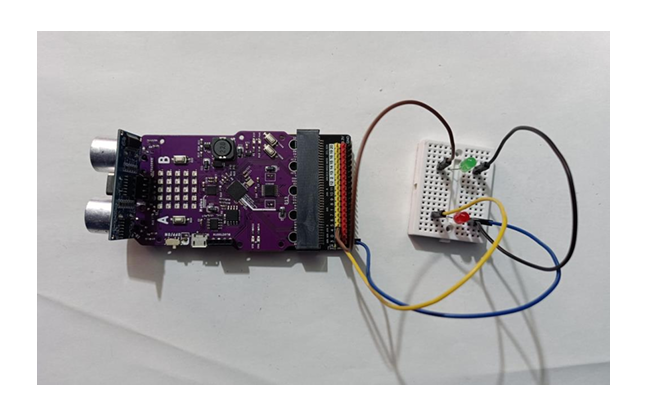

Step 7: Connect –VE of LEDs with GND of connector. Also connect the ultrasonic sensor on TeBoT.
Now, turn on the TeBoT. You will see the green light will glow. When you take your hand or some object in front of ultrasonic sensor, the red light will glow and speaker will give sound.
Conclusion: From this project we got the idea about all components, connection of those components and made the danger detector.
