Digital Scale

Aim:

The main aim of the project is to measure the distance digitally by the help of ultrasonic sensor.

Components Required:

Sr. No	Component	Quantity
1	TeBoT	1
2	TeBoT Cable	1
3	Ultrasonic Sensor	1

Connection and Code Upload:

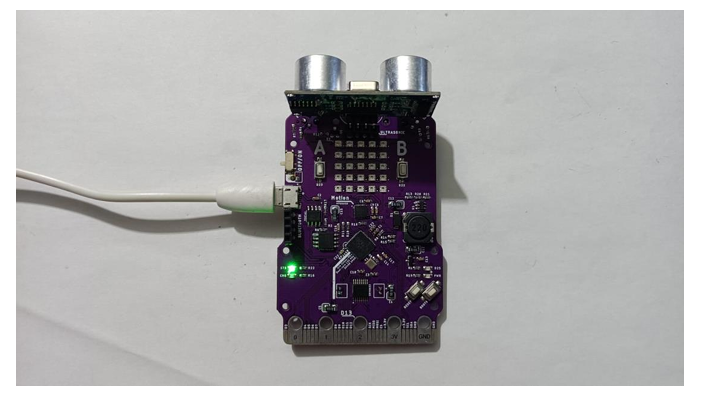

Step 1: Connect the Ultrasonic Sensor on TeBoT. Also connect the TeBoT with your device and turn on it.

Step 2: Select the board and port, then upload the code.

Warning: If you face any issue while uploading the code, then first “OFF” the TeBoT. Next, turn “ON” the TeBoT. Press the “BOOT” button for a short time then press the “RESET” button once. Then release the “BOOT” button. You will get a drive. Then upload the code.

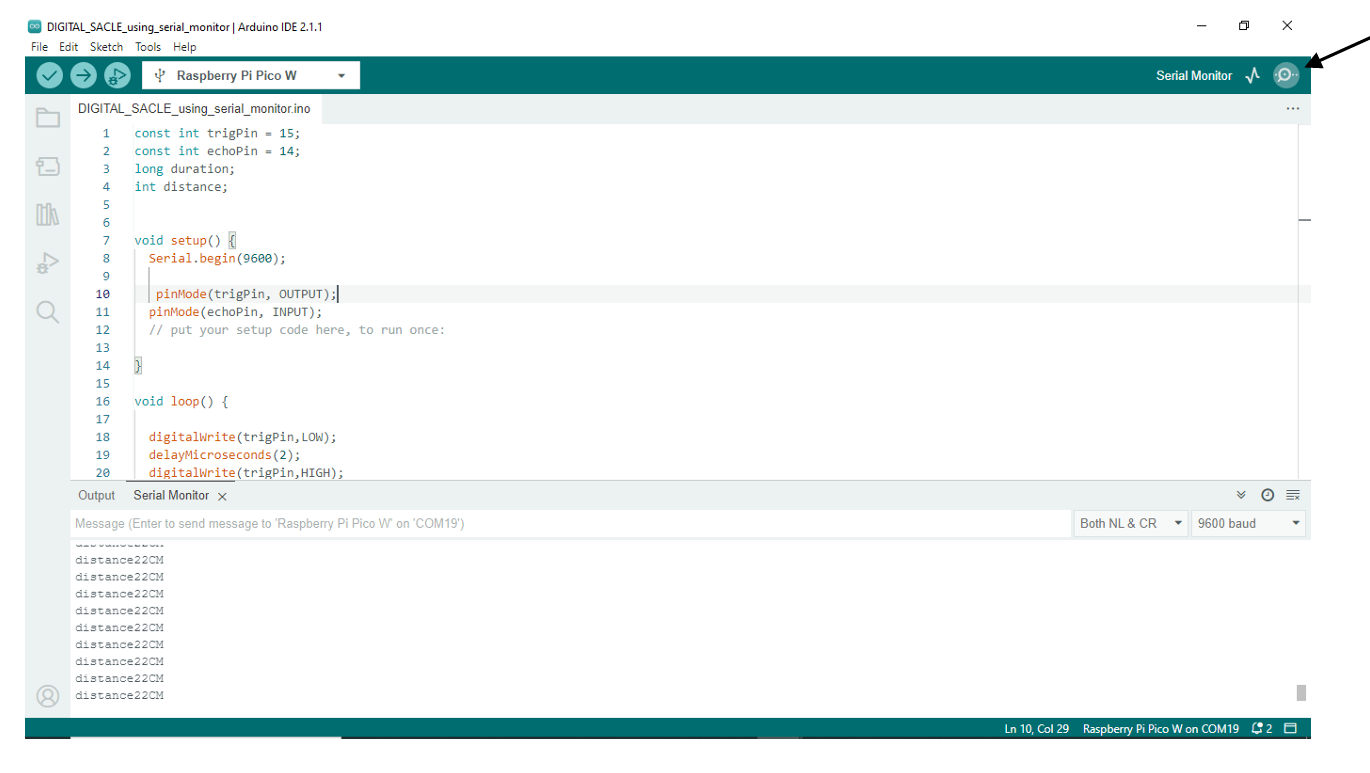

Step 3: Now go to serial monitor in Arduino IDE.

Now, when you put something in front of ultrasonic sensor you will see the change in distance in the serial monitor.

Conclusion: From this project we got the idea about all components, connection of those components and made the digital scale.
