LED Pattern by Ultrasonic

Aim:

The main aim of the project is to print different pattern of LED on TeBoT with the help of ultrasonic sensor.

Components Required:

Component	Quantity
TeBoT	1
TeBoT Cable	1
Ultrasonic Sensor	1

Connection and Code Upload:

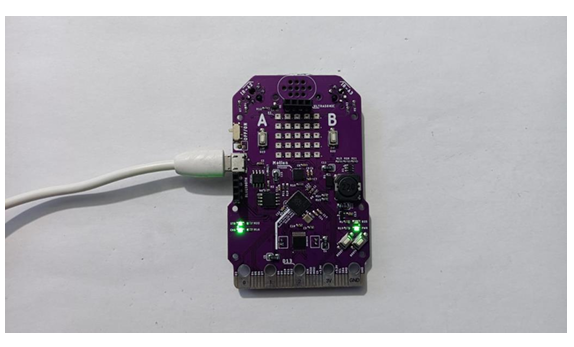

Step 1: Connect the TeBoT with your device and turn on it.

Step 2: Select the board and port, then upload the code.

Warning: If you face any issue while uploading the code, then first “OFF” the TeBoT. Next, turn “ON” the TeBoT. Press the “BOOT” button for a short time then press the “RESET” button once. Then release the “BOOT” button.

You will get a drive. Then upload the code.

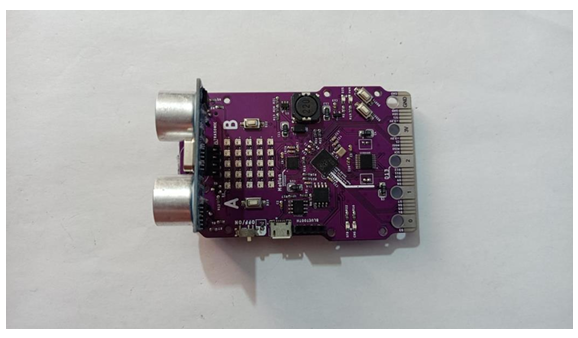

Step 3: Now take the ultrasonic sensor and connect on TeBoT.

Now turn on TeBoT. Then show your hand or some object in front of ultrasonic sensor, LEDs will glow in different pattern.

Conclusion: From this project we got the idea about all components, connection of those components and made the LED pattern by ultrasonic on TeBoT.
