Mood Lamp
Mood Lamp
Aim:
The main aim of the project is to make the mood lamp on TeBoT.
Components Required:
| Sr. No | Component | Quantity |
|---|---|---|
| 1 | TeBoT and cable | 1 |
| 2 | TeBoT Connector | 1 |
| 3 | Jumper Wires(M-F) | 4 |
| 4 | RGB LED | 1 |
| 5 | Breadboard | 1 |

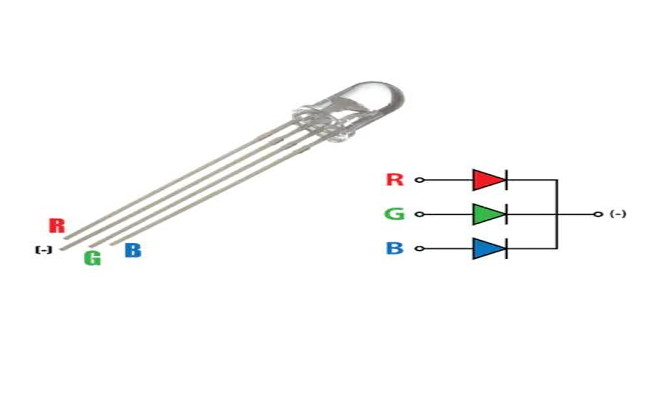

RGB LED Pinouts:
Connection and Code Upload:
Step 1: Connect the TeBoT with your device and turn on it.

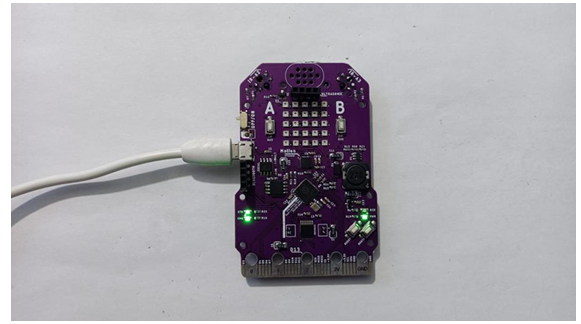

Step 2: Select the board and port, then upload the code.
Warning: If you face any issue while uploading the code, then first “OFF” the TeBoT. Next, turn “ON” the TeBoT. Press the “BOOT” button for a short time then press the “RESET” button once. Then release the “BOOT” button.
You will get a drive. Then upload the code.

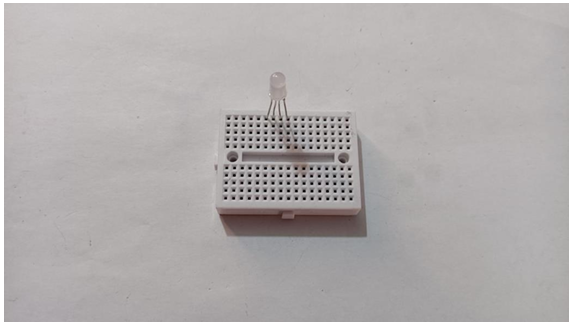

Step 3: Connect the RGB LED on Breadboard.

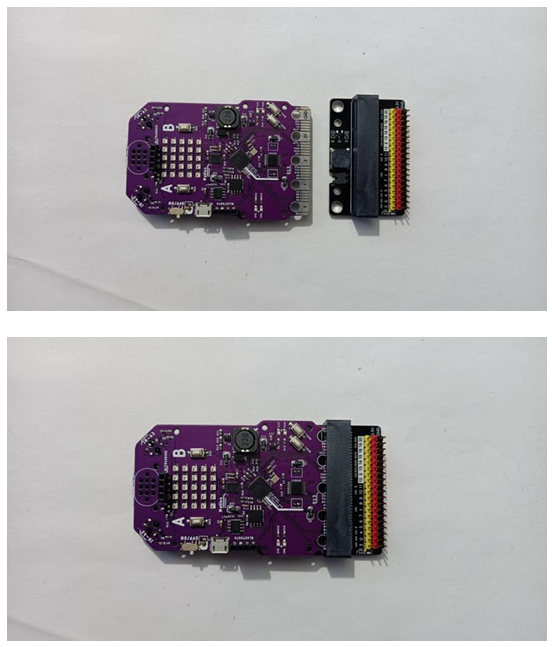

Step 4: Connect the connector on TeBoT.

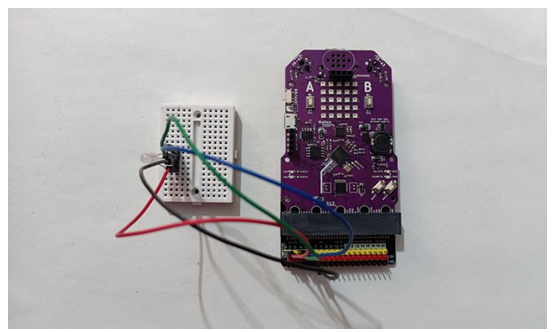

Step 5: Now take the RGB LED and connect with TeBoT.
| RGB LED | ↔ | TeBoT Connector |
|---|---|---|
| Red | ↔ | Pin No 3 |
| Green | ↔ | Pin No 4 |
| Blue | ↔ | Pin No 5 |
| -VE | ↔ | GND |
Now, turn on the TeBoT. You will see the RGB LED will glow in three Colors.
Conclusion: From this project we got the idea about all components, connection of those components and made the Mood Lamp.
