Aim:
The main aim of the project is to make a security system with the help of PIR sensor on TeBoT.
Components Required:
| Sr. No | Component | Quantity |
|---|---|---|
| 1 | TeBoT and cable | 1 |
| 2 | PIR Sensor | 1 |
| 4 | Jumper Cable(M-F) | 3 |
Connection and Code Upload:

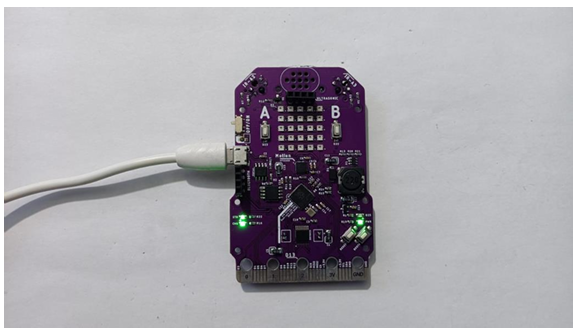

Step 1: Connect the TeBoT with your device and turn on it.
Step 2: Select the board and port, then upload the code.
Warning: If you face any issue while uploading the code, first “OFF” the TeBoT. Next, turn “ON” the TeBoT. Press the “BOOT” button for a short time then press the “RESET” button once. Then release the “BOOT” button.
You will get a drive. Then upload the code.

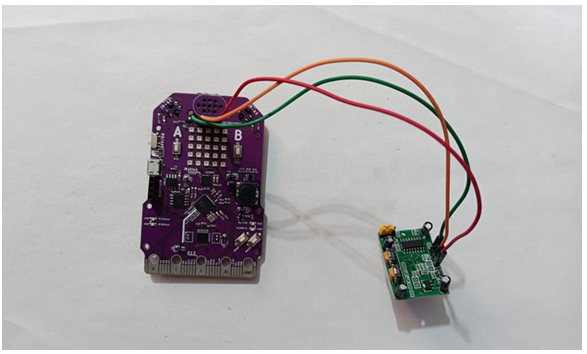

Step 3: Take the PIR sensor and connect with TeBoT.
- VCC of PIR with VCC (1st pin in ultrasonic port from right to left) of TeBoT.
- GND of PIR with GND (1st pin in ultrasonic port from left to right) of TeBoT.
- OUT of PIR with Pin no 14 (2nd pin in ultrasonic port from left to right) of TeBoT.
Now, turn on the TeBoT. When you move your hand or some object in front of PIR sensor, the speaker will give a sound. It’s happening because the PIR is a sensor that detects the motion.
Conclusion: From this project we got the idea about all components, connection of those components and made the PIR security system.
