Print TechBoT on LCD

Aim:

The main aim of the project is to print TechBoT on LCD.

Components Required:

Sr. No	Component	Quantity
1	TeBoT and cable	1
2	TeBoT Connector	1
3	LCD_I2C	1
4	Jumper Wires(F-F)	2
5	Jumper Wires(M-F)	2

Connection and Code Upload:

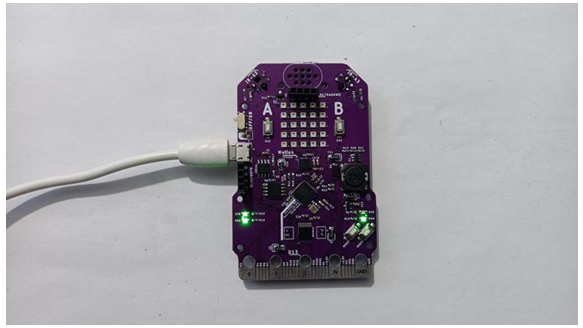

Step 1: Connect the TeBoT with your device and turn on it.

Step 2: Select the board and port, then upload the code.

Warning: If you face any issue while uploading the code, then first “OFF” the TeBoT. Next, turn “ON” the TeBoT. Press the “BOOT” button for a short time then press the “RESET” button once. Then release the “BOOT” button.

You will get a drive. Then upload the code.

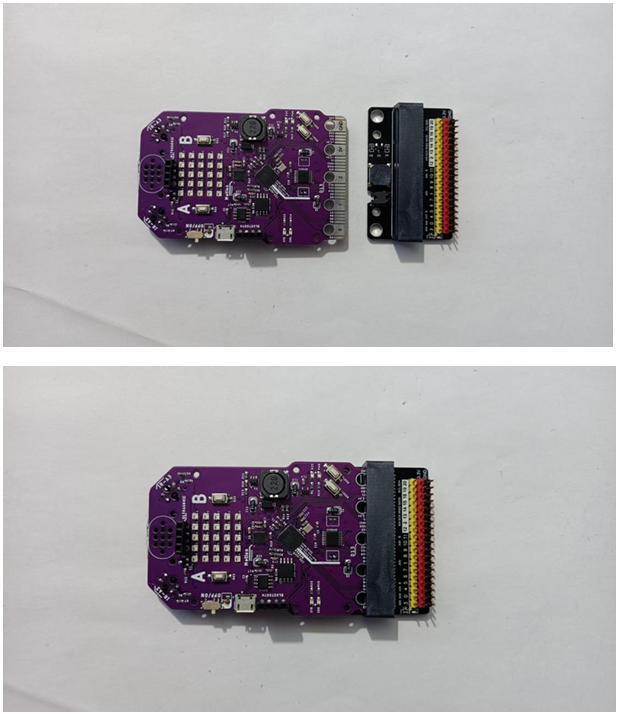

Step 3: Now take the connector and connect on TeBoT.

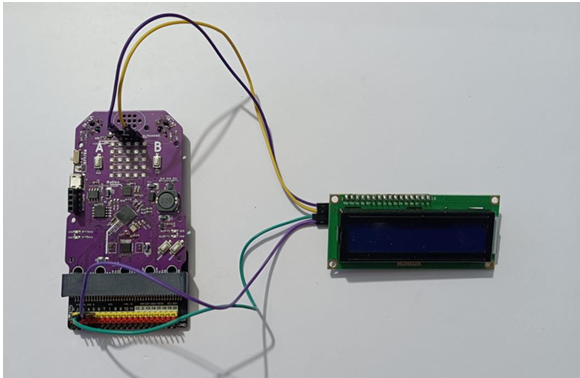

Step 4: Now connect the LCD with TeBoT.

LCD_I2C	↔	TeBoT
GND	↔	GND (1st pin from left to right in Ultrasonic Port)
VCC	↔	VCC (1st pin from right to left in Ultrasonic Port)
SDA	↔	Pin no 4 (Connector)
SCL	↔	Pin no 5 (Connector)

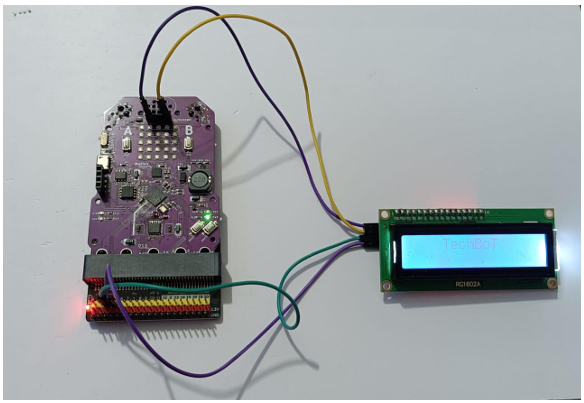

Step 5: Now when you turn on the TeBoT, you will see the TechBoT on LCD.

Conclusion: From this project we got the idea about all components, connection of those components and printed TechBoT on LCD.
