Smart Lamp

Aim:

The main aim of the project is to make a smart lamp on TeBoT.

Components Required:

Sr. No	Component	Quantity
1	TeBoT and cable	1
2	Jumper Wires (M-F)	5
3	LDR Module	1
4	LED	1

Connection and Code Upload:

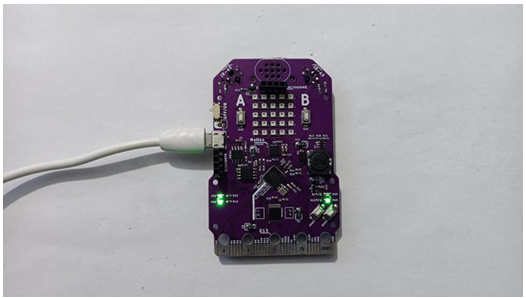

Step 1: Connect the TeBoT with your device and turn on it.

Step 2: Select the board and port, then upload the code.

Warning: If you face any issue while uploading the code, first “OFF” the TeBoT. Next, turn “ON” the TeBoT. Press the “BOOT” button for a short time then press the “RESET” button once. Then release the “BOOT” button.

You will get a drive. Then upload the code.

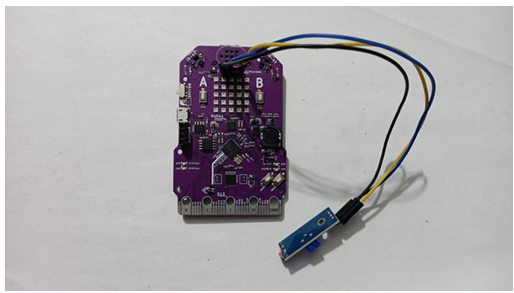

Step 3: Take the LDR module and connect with TeBoT.

LDR Module	↔	TeBoT
VCC	↔	VCC (1st pin from right to left in ultrasonic port)
GND	↔	GND (1st pin from left to right in ultrasonic port)
DO	↔	Pin No 14 (2nd pin from left to right in ultrasonic port)

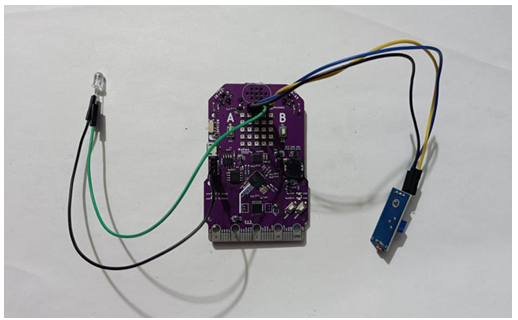

Step 4: Now take the LED and connect with TeBoT. Connect +VE of LED with 15 pin (2nd pin from right to left in ultrasonic port) of Te-Bot and –VE of LED with GND (2nd pin from up to down in Bluetooth port) of TeBoT.

Now turn on the TeBoT. When there is dark on the LDR, the LED will glow and when there is light on the LDR, the LED will OFF. So, in dark the LED will glow and in light the LED will not glow.

Conclusion: From this project we got the idea about all components, connection of those components and made the Smart Lamp.
