Soil Moisture Detection

Aim:

The main aim of the project is to detect the moisture in soil with the help of sensor.

Components Required:

Sr. No	Component	Quantity
1	TeBoT and Cable	1
2	Soil Moisture Sensor	1
3	Jumper Wire(M-F)	3
4	Jumper Wire(F-F)	2

Connection and Code Upload:

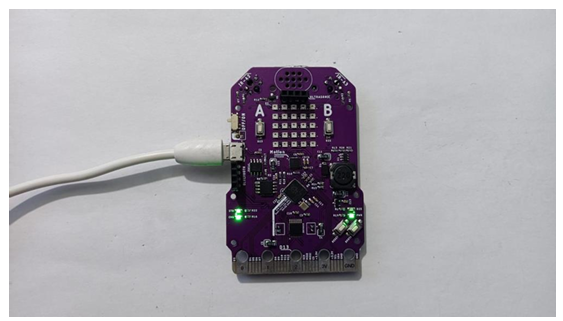

Step 1: Connect the TeBoT with your device and turn on it.

Step 2: Select the board and port, then upload the code.

Warning: If you face any issue while uploading the code, then first “OFF” the TeBoT. Next, turn “ON” the TeBoT. Press the “BOOT” button for a short time then press the “RESET” button once. Then release the “BOOT” button.

You will get a drive. Then upload the code.

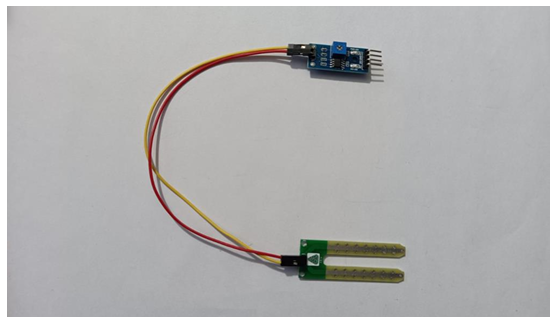

Step 3: Now take the soil moisture sensor and module and connect with each other.

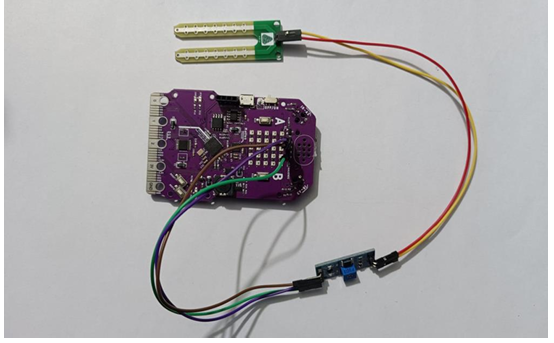

Step 4: Now connect the soil moisture with TeBoT.

VCC of Soil moisture with VCC (1st pin from right to left in ultrasonic port) of TeBoT.
GND of Soil moisture with GND (1st pin from left to right in ultrasonic port) of TeBoT.
DO of Soil moisture with Pin No 14 (2nd pin from left to right in ultrasonic port) of TeBoT.

Now, turn on the TeBoT. Take the soil moisture sensor and dip it in the soil. If the soil is dry, then the speaker will give a sound.

Conclusion: From this project we got the idea about all components, connection of those components and made the Soil Moisture Detection Project.
