Aim:
The main aim of the project is to make the traffic light on TeBoT.
Components Required:
| Sr. No | Component | Quantity |
|---|---|---|
| 1 | TeBoT and cable | 1 |
| 2 | TeBoT Connector | 1 |
| 3 | Jumper Wires(M-F) | 4 |
| 4 | Jumper Wires(M-M) | 2 |
| 5 | LED (Red, Green, Yellow) | 1 |
Connection and Code Upload:

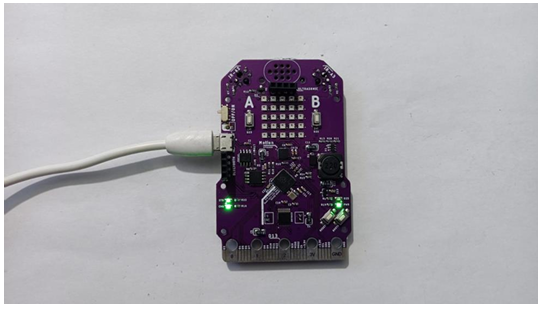

Step 1: Connect the TeBoT with your device and turn on it.
Step 2: Select the board and port, then upload the code.
Warning: If you face any issue while uploading the code, then first “OFF” the TeBoT. Next, turn “ON” the TeBoT. Press the “BOOT” button for a short time then press the “RESET” button once. Then release the “BOOT” button. You will get a drive. Then upload the code.

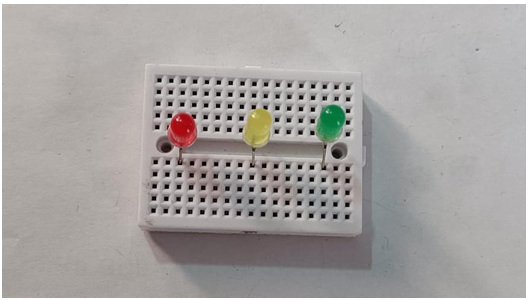

Step 3: Now take the breadboard and connect Red LED, Yellow LED and Green LED on it.

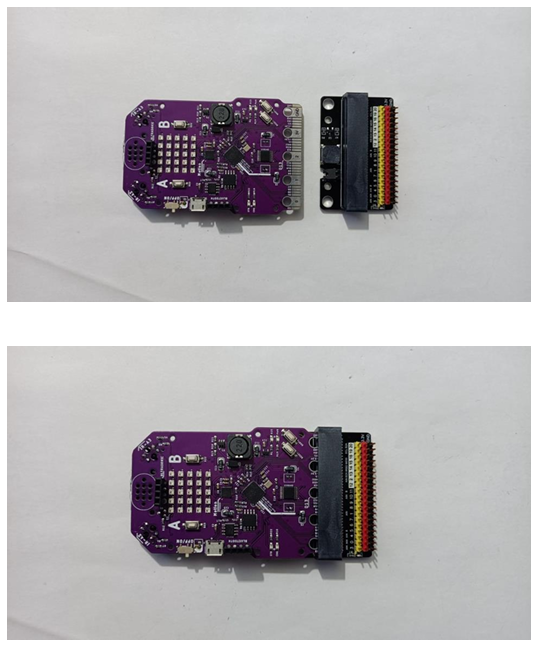

Step 4: Then connect the connector with TeBoT.

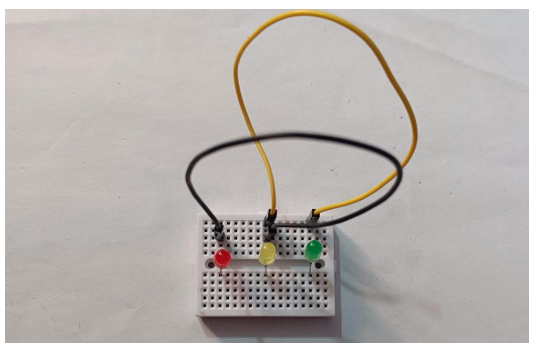

Step 5: Connect –VE of Red LED with –VE of Yellow LED and also connect –VE of Yellow LED with –VE of Green LED.
Step 6: Now connect the LEDs with Te-Bot.
- Connect –VE of Green LED with GND of connector.
- Connect +VE of Red LED with Pin no 3 of connector.
- Connect +VE of Yellow LED with Pin no 4 of connector.
- Connect +VE of Green LED with Pin no 5 of connector.

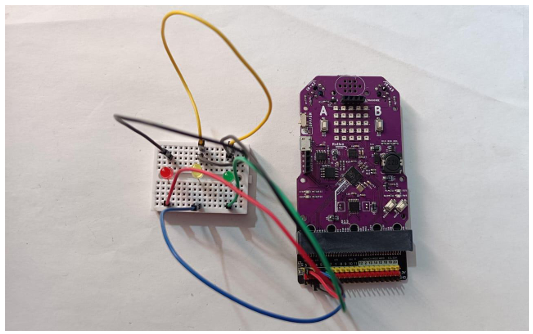

Now, turn on the TeBoT. You will see the Red light will glow first. Then the Yellow light will glow and next the Green light will glow.
Conclusion: From this project we got the idea about all components, connection of those components and made the Traffic Light.
